Conveyor Technology

The lifeblood of any company are all the small cogs that keep vital processes running. These include (intra-) logistics processes in particular.

A company is only as good as the conveyor technology and transport systems that keep it moving. Unit loads – in the sense of goods, materials, packages – must be safely stored, transported, sorted and made available at the right place at the right time and at the right cost. By using transport systems, internal intralogistics processes can not only be made easier, but also much more efficient and cost-effective.

Purchase your conveyor technology directly from the manufacturer!

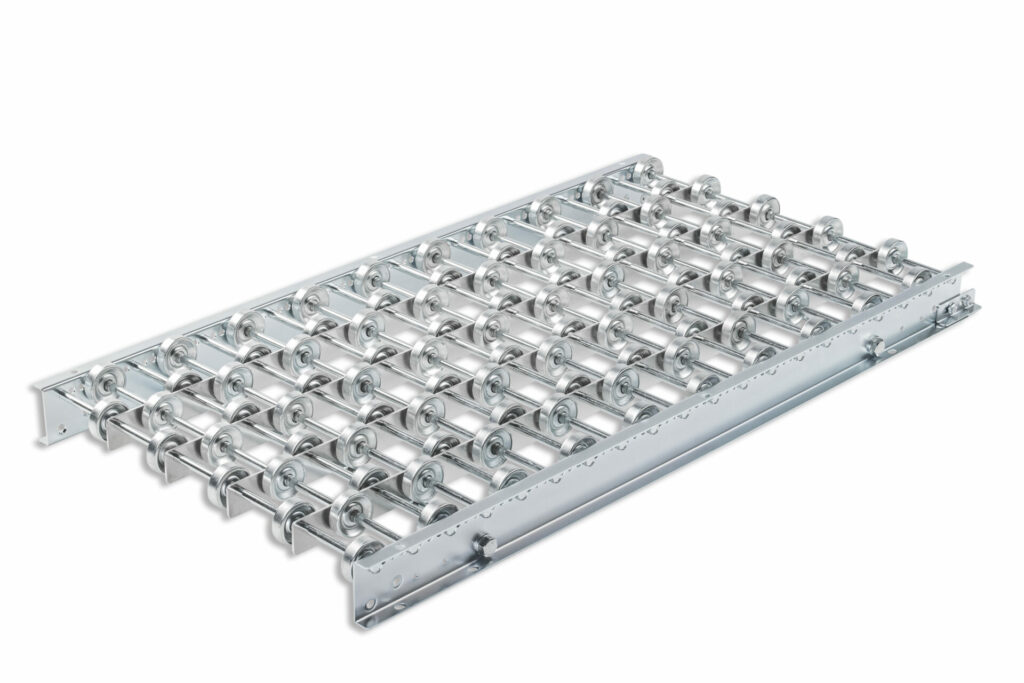

Roller conveyors

For small transport goods

Roller conveyors with plastic roller

  • resistant to corrosion
  • require hardly any thrust
  • start up quickly
  • inexpenisve
  • have a gentle effect on the transported goods
  • transport medium-heavy general cargo
  • quiet
  • diameter 20 / 30 / 40 / 50 mm
  • ball bearing mounted
  • length of track 1000 / 2000 / 3000 mm
  • galvanized profiles
  • max. load up to 25 kg
  • screw or spring axle
  • blue plastic (similar RAL 5015)
  • track width 200 / 300 / 400 / 500 / 600 mm

Roller conveyors with steel roller

  • high resilience, even with large track width
  • absorb a lot of thrust and retain it for a long time
  • transport heavier and wider unit loads
  • max. load up to 40 kg
  • ball bearing mounted
  • length of track 1000 / 2000 / 3000 mm
  • galvanized profiles
  • galvanized steel tube
  • screw or spring axle
  • track width 200 / 300 / 400 / 500 / 600 mm
  • diameter 20 / 30 / 40 / 50 mm

Rolls conveyors

For transport goods with a flat, stable base and a minimum width of 200 mm

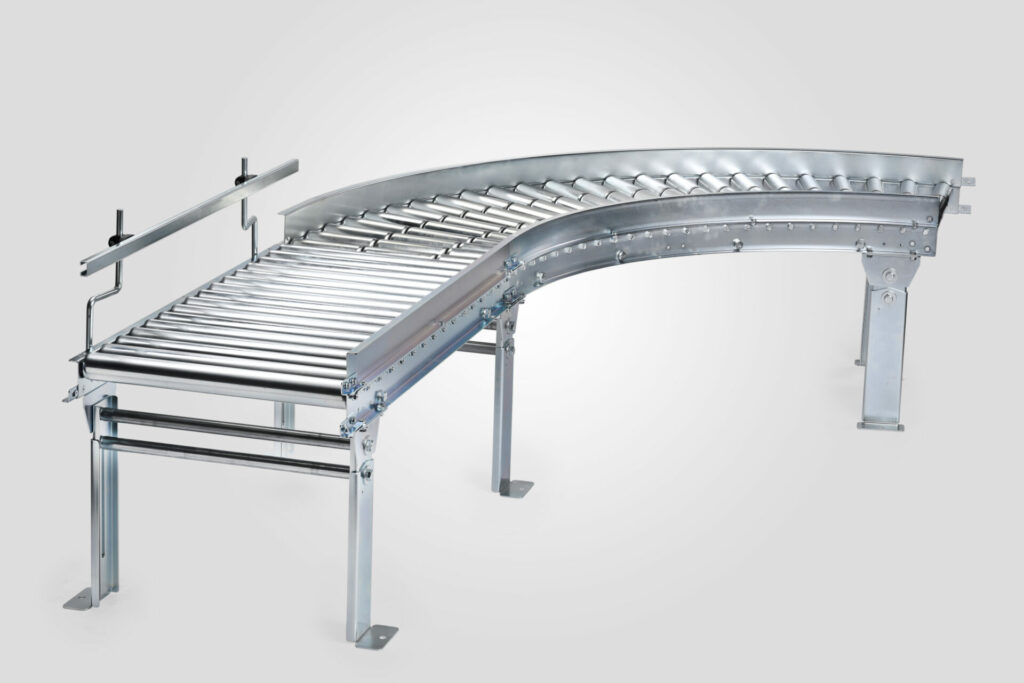

Light rolls conveyors with steel rollers

  • high resilience,
  • absorb a lot of thrust and retain it for a long time
  • transport medium-heavy general cargo with a solid base
  • max. load up to 35 kg
  • ball bearing mounted
  • screw axis Ø 8 mm
  • length of track 1000 / 2000 / 3000 mm
  • galvanized profiles
  • diameter 48 mm
  • track width 500 mm
  • galvanized steel tube

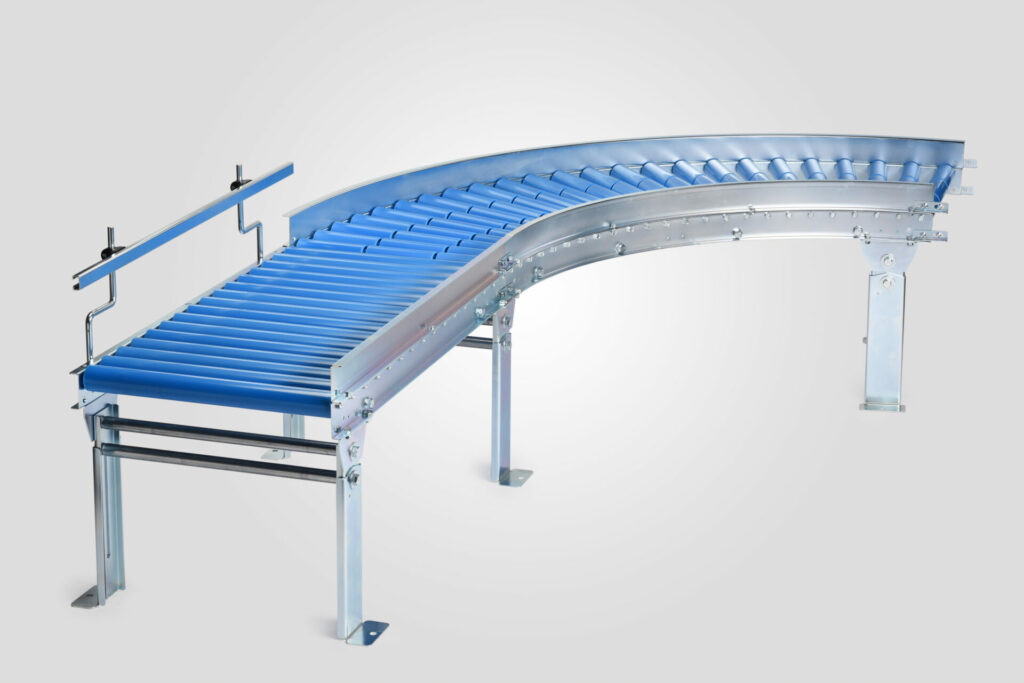

Light rolls conveyors with plastic rollers

  • resistant to corrosion
  • require hardly any thrust
  • start up quickly
  • inexpensive
  • transport light general cargo with a solid base
  • blue plastic (similar RAL 2015)
  • ball bearing mounted
  • screw axis Ø 8 mm
  • length of track 1000 / 2000 / 3000 mm
  • galvanized profiles
  • diameter 48 mm
  • track width 500 mm
  • max. load up to 25 kg

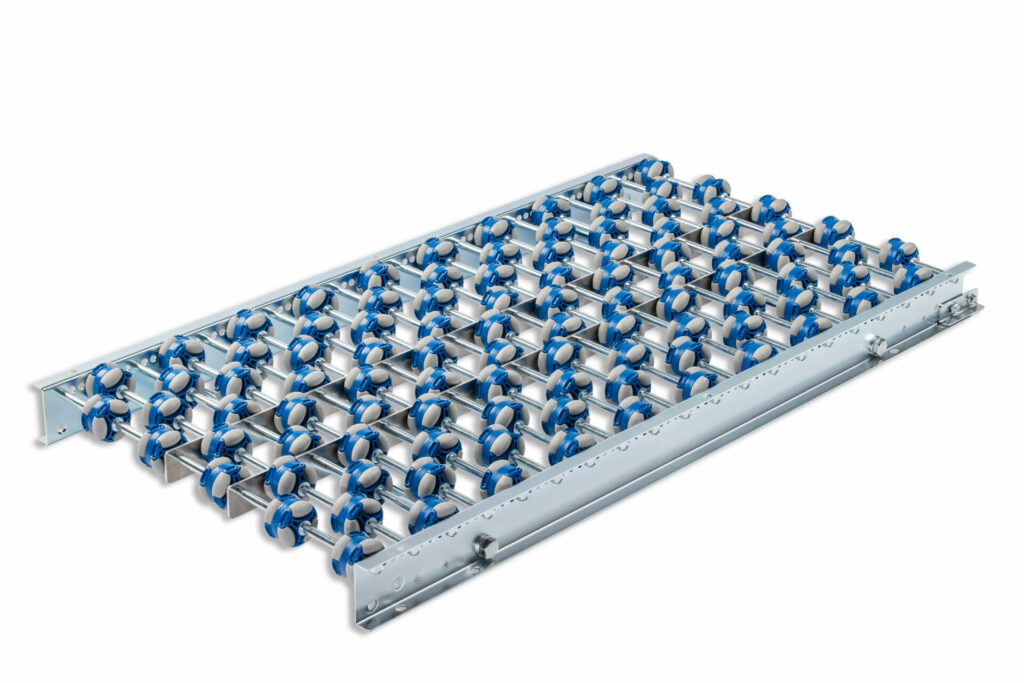

All side roller conveyors

For moving light goods on all sides

All side roller conveyors

  • suitable for right-angled cross transport at distribution, turning or discharge points
  • for medium-heavy unit loads with a firm base
  • max. load up to 30 kg
  • ball bearing mounted
  • screw axis Ø 8 mm
  • length of track 1000 / 2000 / 3000 mm
  • galvanized profiles
  • diameter 48 mm
  • track width 500 mm
  • plastic guide roller

Accessories

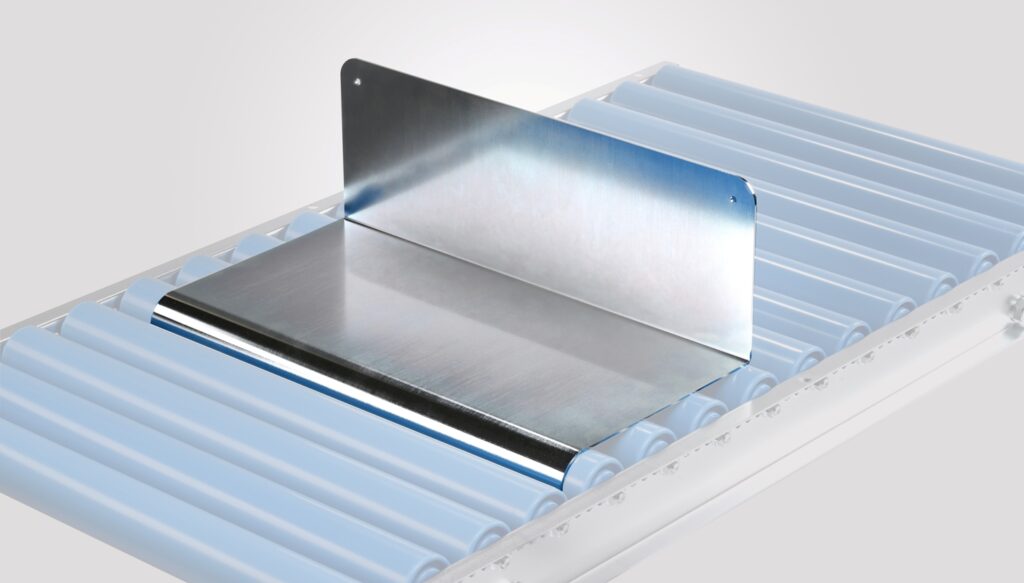

Limit Stops

  • steel (galvanized)
  • permanently assembled or flexibly hookable

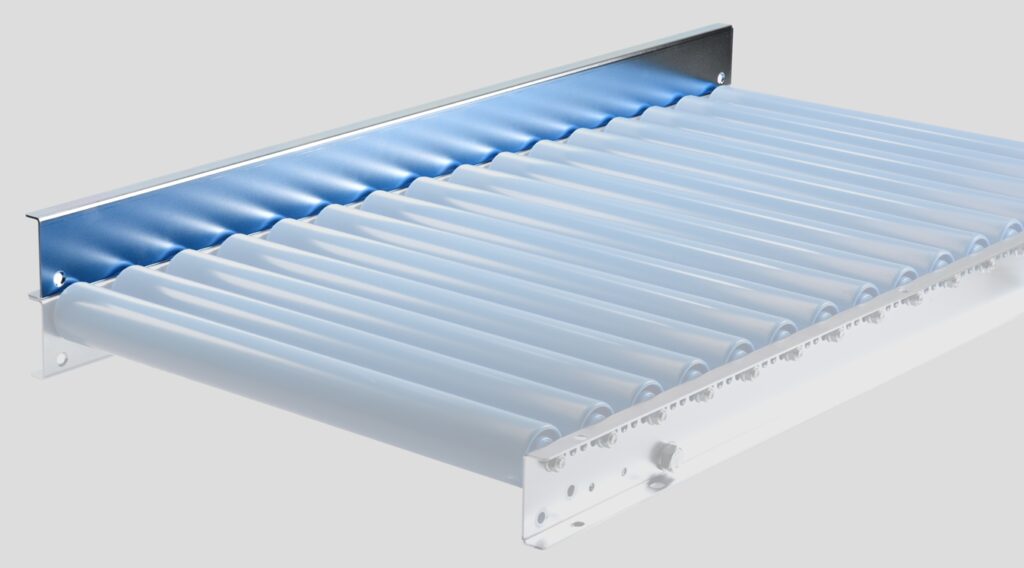

Directional Control

  • steel (galvanized)
  • various versions

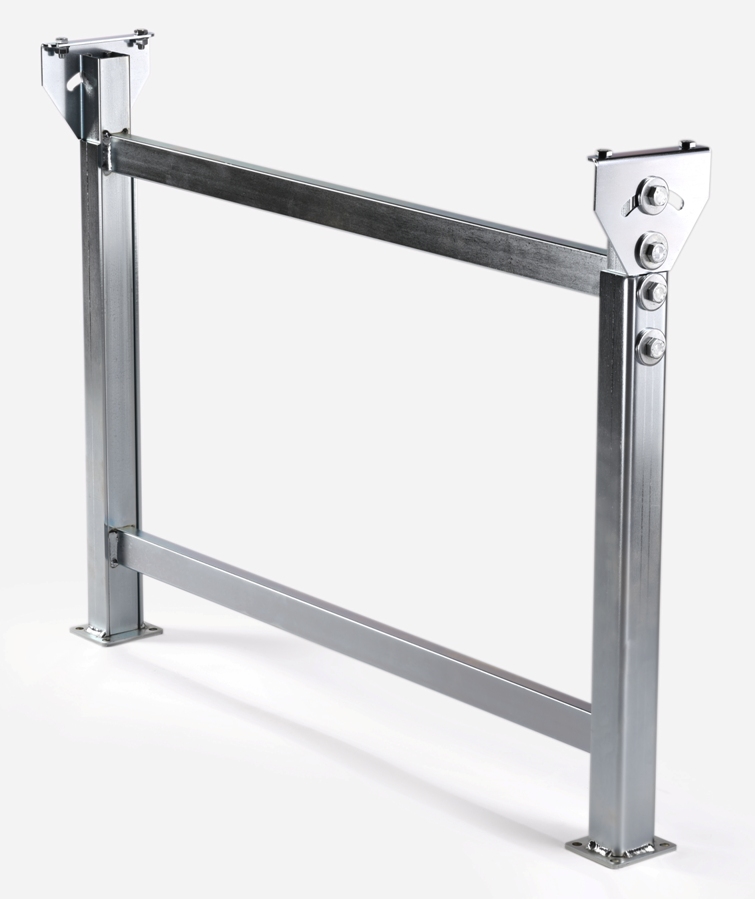

Pillars

  • various versions
  • stepless adjustable
  • steel (galvanized or powdered)
Company

Manufacturing at the highest technical level

Schulz conveyor systems LLC, based in Gräfenroda, was founded in 1991 by Mr Peter Schulz. Immediately after its foundation, the company began to invest in the latest technologies.
